 MITAC   MX1-10FEP-D





MX1-10FEP-D

Embedded System for GPU Computing with Intel® Coffee Lake Xeon / Core-i Powerful Processor







Powerful Coffee Lake-S Refresh Xeon Processor

MiTAC's MX1-10FEP-D is the next generation embedded system with Intel® Coffee Lake C246 workstation chipset which can support Xeon and Core-i LGA1151 socket type processor. The powerful processor, OCP/OVP power protection, and expandable I/O design provide the solution for every complicated task and most types of application.





Xeon

  • Up to 1.36X Performance Improvement compared to the previous generation
  • Fanless design with up to Xeon TDP 80W



Core i

Up to 1.15X Performance Improvement compared to 7th generation

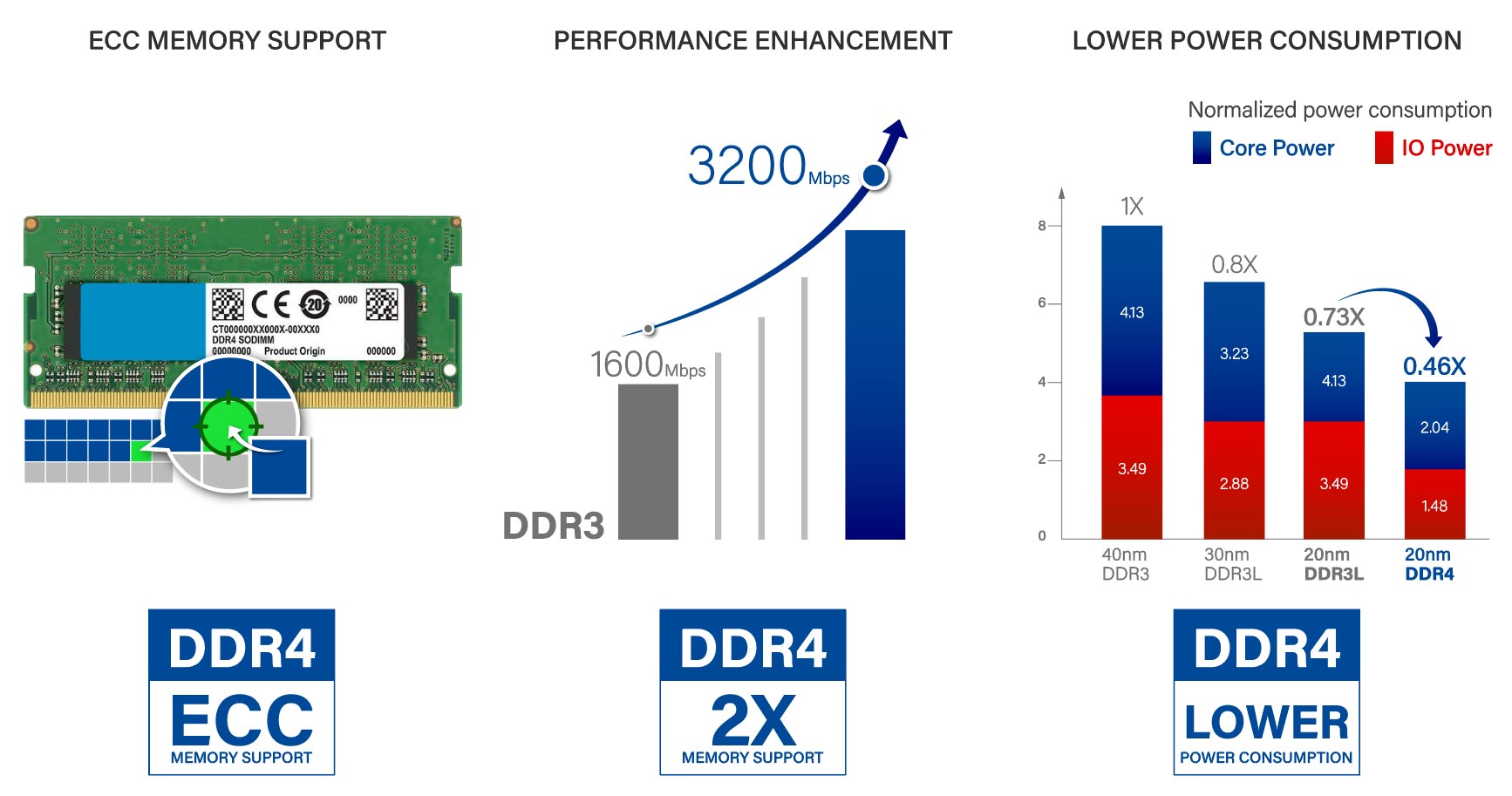

Support ECC DDR4 Memory









Versatile Xpansion Modules

The versatile Xpansion Module design, offers various I/O functionalities through its lower clever cost effective modulation, providing all functions within one system.

  • Versatile I/O connectivity. Up to 12 LAN, 10 PoE, 10 COM, 16 DIO
  • Power ignition Xpansion module for vehicle application

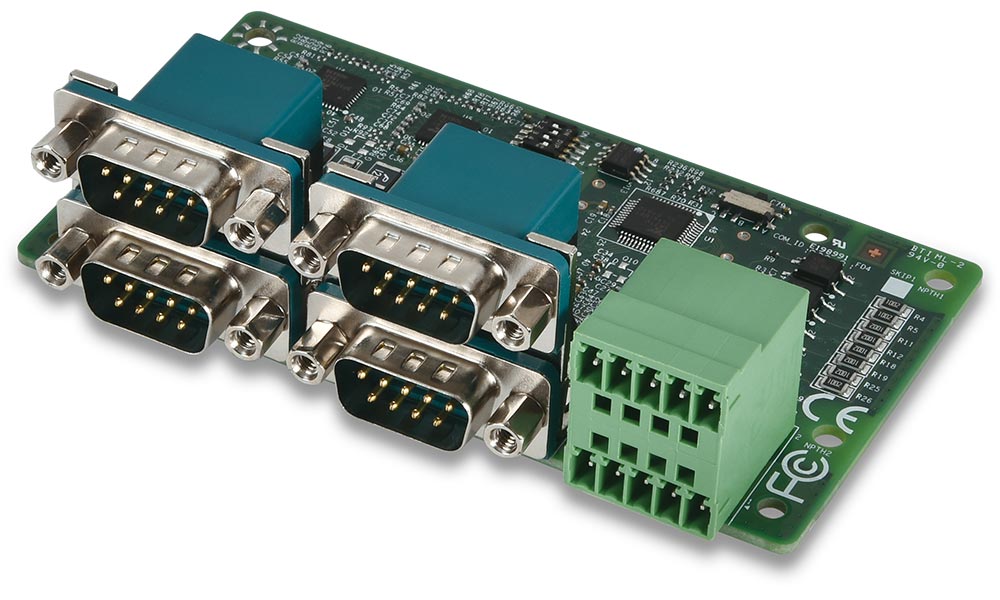

Xpansion Module with 4 x RS232 / 422 / 485, 8-bit Isolated DIDO (4 x DI, 4 x DO)

Xpansion Module with 4 x Intel i210-IT Giga LAN, RJ45 Port

Xpansion Module with 4 x Intel i210-IT Giga LAN, M12 Port

Xpansion Module with 4 x PoE+, Intel i210-IT Giga LAN, RJ45 Port

Xpansion Module with 4 x PoE+, Intel i210-IT Giga LAN, M12 Port

Xpansion Module with 2 x PoE+, Intel i210-IT Giga LAN, RJ45 Port

Vehicle Power Ignition Card, 12V/24V and Power ON/OFF Timing Selectable

PCIe Riser Card with 1 PCIe 3.0 X16 + 1 PCIe 3.0 X1 Slots (Default)

PCIe Riser Card with 2 PCIe3.0 X8 Slots (Optional)





Edge AI Accelerator

4 X Intel® Movidius™ Myriad™ X for Edge AI

MX1-10FEP-D with AI modules powered by Intel® Movidius™ Myriad™ X creates the possibility to be implemented in more Edge AI solutions, for example, traffic flow monitoring and real-time decision, manufacturing yield rate improvement via AI algorithm, remote healthcare service, and efficient transportation.





  Maximum AI Cores:
Up to 4 x Movidius Myriad X



Support Intel OpenVINO Toolkit



Supported Framework:
TensorFlow, Caffe, MXNET
